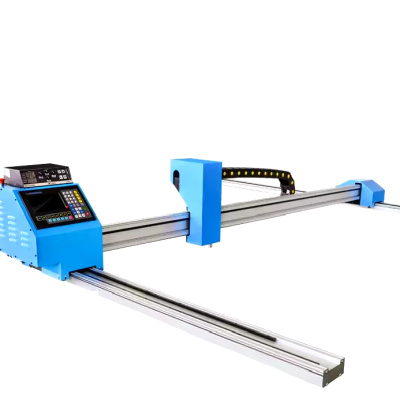

Portable Gantry Type CNC Plasma Cutting Machine (6.5X3.5 m)
Model: CNC6535G
The Weldnex CNC6535G Portable Gantry CNC Plasma Cutting Machine is designed for full-width industrial cutting with a large 6500×3500 mm area. Built with a robust dual-side gantry structure, it offers high stability and precision. Supporting both Plasma and Oxyfuel cutting modes, it delivers flexibility and efficiency for handling thick and thin metal sheets in heavy-duty fabrication environments.
Portable Gantry CNC Plasma Cutting Machine – Heavy-Duty Cutting with Full Extended Reach of 3500 mm
Specification
| Specification | CNC6535G |
|---|---|
| Input Voltage (V) | 220 |
| Phase | I |
| Input Power (W) | 220 |
| Effective Cutting Range {X*Y} (mm) | 3500X6500 |
| Customized Information | Length of Y axis rails can be extended |
| Driving Configuration | Stepper Motor |
| Max. Working Speed (mm/min) | 6500 |
| Cutting Mode | Plasma Cutting + Oxyfuel |
| Cutting Torch Lifting Distance Z-axis (mm) | ≤120 |
| Cutting Accuracy (mm / m) | ± 0.2 |
| Flame (Gas) Cutting Capacity | Edge start cutting: 5-200mm, Piercing capacity: 5-60 mm |
| Plasma Cutting Capacity | 0.4-25mm based on plasma source's cutting capacity |
| Controller | F2100B controller |
| Software | Fastcam (Licensed Software) |
| Torch Height Control | F1621 THC |
| Weight (KG) | 150 |
| Packaging Dimension (mm) | 3400×450×500 |
Key Features
Large Cutting Size: Massive 6500×3500 mm cutting area for wider sheets and plates
Dual-Side Gantry Structure: Provides enhanced stability and precision during operation
Dual Cutting Modes: Supports both Plasma and Oxyfuel cutting for a wide range of material thickness
High Accuracy & Clean Edge Finish: Ideal for intricate profiles and complex shapes
Portable Design: Easy to relocate and install in different workshop or site conditions
CNC Automation: Reduces human error and ensures consistent, repeatable cuts
Heavy-Duty Build: Designed for long life and reliable performance in industrial use
Wide Application: Suitable for steel fabrication, heavy machinery, shipbuilding, and more
Description
Cutting Size: 6500×3500 mm | Dual-Side Gantry | Dual Cutting Mode (Plasma + Oxyfuel)
The Weldnex CNC6535 Portable Gantry CNC Plasma Cutting Machine is a premium-grade industrial solution designed for heavy-duty and large-format metal cutting. Engineered with a dual-side gantry structure and an expansive cutting area of 6500×3500 mm, it offers full-width processing capabilities for industries such as structural steel fabrication, shipbuilding, and heavy machinery manufacturing.
Built to handle both Plasma and Oxyfuel cutting, this machine offers flexibility in cutting thin to thick metals with excellent edge quality and cutting speed. The portable gantry design ensures ease of transport and installation, while its robust construction provides long-lasting durability and performance in demanding industrial environments.
The CNC6535 is equipped with an advanced CNC control system that enables automated cutting operations, precise torch movement, and reduced setup time, helping manufacturers increase productivity and reduce labor costs.
