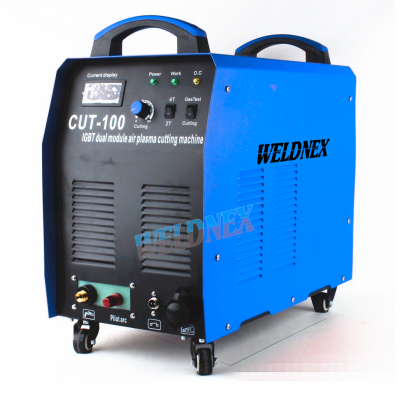

Air Plasma Cutting Machine 100 Amps Dual Module IGBT
Model: CUT100
The Weldnex 100 Amp Air Plasma Cutting Machine is built with advanced Dual Module IGBT inverter technology, delivering powerful, precise cutting for a wide range of metals including steel, stainless steel, and aluminum. Designed for heavy-duty industrial use, it ensures stable arc performance, clean edges, and minimal dross even on thicker materials, making it ideal for fabrication workshops, construction sites, and repair jobs.
Weldnex 100 Amp Air Plasma Cutting Machine – Dual Module IGBT Inverter for High-Performance Industrial Cutting
Specification
| Specification | CUT100 |
|---|---|
| Input Voltage (V) | 415 |
| Phase | III |
| Input Capacity (KVA) | 18.5 |
| No-Load Voltage (V) | 320 |
| Current Range (A) | 20-100 |
| Duty Cycle | 60% |
| Arc Ignition Mode | Pilot Arc |
| Cutting Thickness (mm) | Upto 30 mm |
| Function | Plasma Cutting |
| Degree of Protection | IP63 |
| Insulation Class | H |
| Power Factor | 0.9 |
| Efficiency (%) | 85 |
| Weight (KG) | 30 |
| Dimension (mm) | 530X260X490 |
Key Features
-
100 Amps Output – Cuts up to 30 mm thick metal with precision and efficiency
-
Dual Module IGBT Inverter Technology – Ensures stable arc and energy-efficient performance
-
High-Frequency Pilot Arc – Cuts through dirty or painted surfaces without direct contact
-
Digital Control Panel – Allows precise adjustment for varying metal thickness and materials
-
Low Dross, Narrow Kerf, Clean Finish – Reduces post-cut processing time
-
Thermal Overload & Voltage Protection – Increases machine durability and operator safety
-
Compact Yet Heavy-Duty Build – Portable for on-site use, powerful for industrial applications
-
Air-Cooled System – Maintains optimal temperature during long cutting sessions
-
Compatible with Standard Air Compressors – Easy integration into existing workshop setups
Description
The Weldnex Air Plasma Cutting Machine 100 Amp is an advanced, heavy-duty metal cutting solution designed to meet the demanding needs of industrial fabrication, construction, and maintenance operations. Engineered with Dual Module IGBT inverter technology, this machine delivers exceptional power, arc stability, and cutting precision across a wide range of metals including mild steel, stainless steel, aluminum, copper, and galvanized sheets.
With a cutting capacity of up to 30 mm, the Weldnex 100 is built for tasks that require consistent performance and clean results, even on thick or coated materials. The high-frequency pilot arc ignition system allows for non-contact starts, enabling it to cut efficiently through rusted, painted, or uneven surfaces without compromising consumable life or edge quality.
Designed for high-output operations, this machine features automatic voltage compensation, thermal overload protection, and air cooling technology, ensuring optimal performance even in rugged and high-temperature environments. Its user-friendly digital control panel allows operators to precisely adjust cutting current for different material types and thicknesses, improving control and cut consistency.
Despite its industrial-grade power, the Weldnex 100 is also compact and portable, making it suitable for both stationary workshop use and mobile job site applications. It operates seamlessly with standard air compressors, requiring no special setup while delivering industrial-level cutting capabilities.
